A&ultima

Professional-grade

PRF11- AK StereoMIC Kit

Professional-grade AK Stereo MIC Kit

Through our collaboration with DPA(Danish Professional Audio), manufacturer of world-class microphones, we proudly present the AK Stereo MIC Kit.

The AK Recorder's AK Stereo MIC Kit comes with DPA's model SC4061 omnidirectional miniature MIC set. The DPA SC4061 MIC is manufactured exclusively at DPA's factory in Asnæs, Denmark. During production, each microphone undergoes scores of testing by highly trained members of our Quality Assurance team and must pass a 15-point function inspection before receiving final approval.

The SC4061 MIC can be used to record vocals, musical instruments and interviews. Its SPL(Sound Pressure Level) of 144dB helps produce an optimal recording sound that is free of clipping, even when a loud noise is introduced.

The SC4061 MIC's level of quality is proven by the number of studios and sound engineers who use it worldwide.

detail_01
detail_02
detail_03
DPA SC4061 MIC Frequency Response
detail_04
DPA SC4061 MIC Polar Pattern
detail_05
detail_06

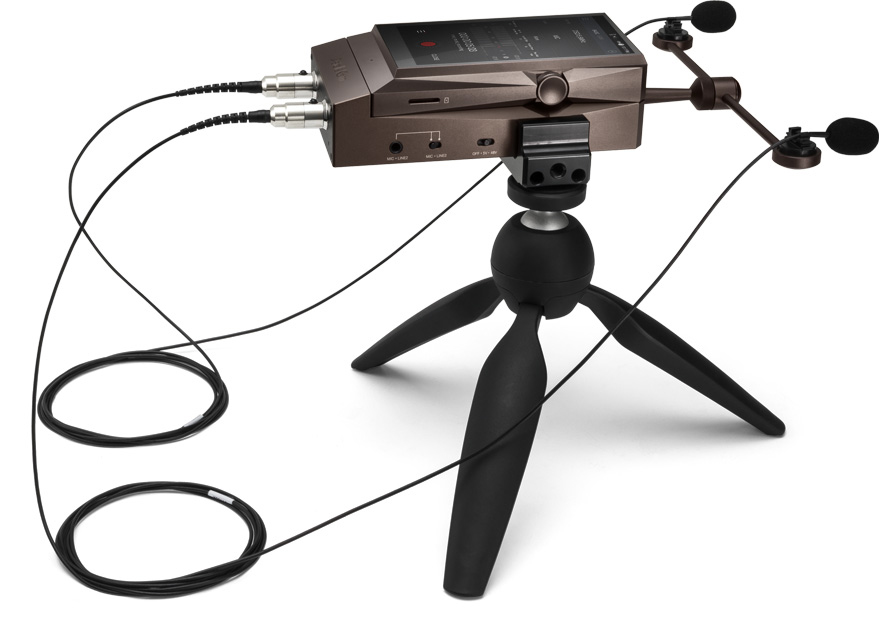

The SC4061 MIC can be secured to the AK Recorder with an optional stereo-mic mount.

Additionally, a fastening accessory comes with the microphone to secure it on top of a musical instrument, such as a piano or a violin. A shoe mount adapter comes with the microphone to fasten the recorder on a tripod. All AK Stereo MIC Kit accessories come packaged in a specially-designed Pelican case for safe and convenient storage and travel.

The AK Stereo MIC Kit is all you need for a perfect recording experience. Simply combine the components and press the "Record" to start.

AK Stereo MIC Kit

- AK Recorder Device
- DPA SC4061 MIC x2
- Mini XLR to XLR Cable x2
- Tripod Grip
- Magnet Mount
- Universal Mount
- MIC Stand
- String Holder
- Wind Screen
- Quick Start Guide
- Warranty Card

detail_07

Specification

  • Model
    PRF11 / AK Stereo MIC Kit
    Body Color
    Meteoric Titan
    Body Material
    Aluminum
    Recording Channel
    2 channel, Stereo recording
    Audio Inputs
    mini XLR 3pin type MIC/LINE x2(L/R), AES3 x1(L), 3.5mm MIC/LINE x1
    mini XLR 3pin map
    1 : Ground(G) / 2 : Positive(+) / 3 : Negative(-)
    Key Interface
    MIC / LINE1 / AES3 select key x1, MIC2 / LINE2 select key x1, Phantom Power select key x1 (off / 5V / 48V)
    Battery
    4,700mAh 3.7V Li-Polymer Battery
    Continuous Recording Time
    about 4hours (24bit/96kHz WAV, External Mic & Phantom Power 48V)
    Dimensions
    3.17 ”(80.7 mm) [W] x 5.01 ”(127.4 mm) [H] x 1.17 ”(29.9 mm) [D]
    Weight
    8.85 oz (251 g)
  • Recording Bit Rate
    WAV : 16 / 24 / 32bit, DSD64, DSD128
    Sampling Frequency
    44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384kHz
    Frequency Response
    10Hz ~ 40kHz
    A/D Dynamic Range
    116dB A-weighted bandwidth
    Equivalent Input Noise
    MIC : -126dBu, 150ohm source, A-weighted filter
    THD+N
    MIC : 0.0004% max (1kHz, -15dBu) / LINE : 0.0006% max (1kHz, -15dBu)
    Gain
    MIC : 9 to 60dB, 3.0dB increments / LINE : -96 to 22dB, 0.5dB increments
    Low Cut Filters
    40 ~ 240Hz in 10Hz steps @ 6,12,18,24dB/oct
    Compressor & Limiter
    0 ~ -10dBFS, 1:2 ~ 1:20; Limiter, 1~1,000ms attack time, 10~2,000ms release time
    Phantom Power
    5V / 48V
  • Directional Pattern
    Omnidirectional
    Frequency Range
    20Hz~20kHz
    Sensitivity, nominal, ±3dB at 1kHz
    6mV/Pa; -44dB re. 1V/Pa
    Equivalent noise level, A-weighted
    Typ. 26dB(A) re. 20µPa(max. 28dB(A))
    S/N ratio(A-weighted), re. 1kHz at 1Pa(94dB SPL)
    68dB(A)
    Total harmonic distortion(THD)
    < 1% THD up to 123dB SPL peak; < 1% THD up to 120dB SPL RMS sine
    Dynamic range
    Typ. 97dB
    Max. SPL, peak before clipping
    144dB
    Power supply
    Phantom Power 5V
    Microphone diameter
    0.21 ”(5.4 mm)
    Microphone length
    0.5 ”(12.7 mm)
    Cable length
    5.9 ft(1.8 m)
    Weight
    0.26 oz(7.5 g)
    Temperature range
    -40°F to 113°F(-40°C to 45°C)
  •
    - Audio was NOT muted during the measurement.
    - The image/specification may be changed without notice to improve product performance and quality.
  •
