All New High-End, A&ultima SP1000
Astell&Kern is proud to introduce the A&ultima SP1000.
The A&ultima SP1000 is a one-of-a-kind, high-end, powerful flagship high resolution music player equipped with the latest advanced features.
- A true flagship high-resolution music player
- First Astell&Kern player to feature an octa-core CPU for outstanding response and performance
- High Definition HD5 display to create the best viewing experience
- Innovative new Multi-function Wheel
- Rigid stainless steel/Copper housing
32-bit 384 kHz
720 x 1,280
Get Both High Output
and Vivid Sound
Traditional audio has suffered from noise and distortion as power output is increased.
Astell&Kern’s advanced audio design and signal management technologies used in the A&ultima
SP1000 brings more power output with less noise and minimal distortion.
Independent DACs for the left and right audio channels provide a wider soundstage and better stereo separation. Each AK4497EQ DAC provides rich and vivid audio reproduction, allowing the listener to enjoy the sound as it was meant to be heard.
- LCD 5inch (720 x 1,280) Touchscreen 4inch (480 x 800) Touchscreen
- DAC AKM AK4497EQ x2 (Dual DAC) AKM AK4490 x2 (Dual DAC)
Balanced 3.9Vrms (Condition No Load) Unbalanced 2.2Vrms
Balanced 2.3Vrms (Condition No Load)
Signal to Noise Ratio
Unbalanced 116dB @ 1kHz
Balanced 117dB @ 1kHz Unbalanced 116dB @ 1kHz
Balanced 117dB @ 1kHz
Unbalanced 0.0005% @ 1kHz
Balanced 0.0008% @ 1kHz Unbalanced 0.0008% @ 1kHz
Balanced 0.0007% @ 1kHz
* SNR (Signal to Noise Ratio) As the signal-to-noise ratio increases, the clearer the sound
* THD+N (THD + Noise, Distortion) over the THD + Noise signal rate, less distortion is heard.
Great Performance for the Ultimate Experience
The A&ultima SP1000 is equipped with an octa-core CPU which allows the player to produce the exact musical detail present in the original recording without distortion and provides a quick, lag-free operation. The A&ultima SP1000 features faster booting times, speedy file transfers, lag-free processing and a new intuitive user interface for the ultimate player experience.
Ultimate Sound Quality
The latest AK4497EQ dual-DAC design and the upgraded CPU in the A&ultima SP1000 allows for
playback of native 32bit/384kHz audio with no compromise on sound quality. The music is played
bit-for-bit, just as the artist and engineer intended for it to be heard.
The A&ultima SP1000 also supports native bit-to-bit DSD playback up to 11.2MHz for the best sound possible.
32-bit bit-to-bit Playback by the SP1000
32-bit Playback by Other Products
New Intuitive User Interface
The A&ultima SP1000 features a revamped interface design which
Provides music playback from the home screen to give users a more
By placing the power button on the Multi-function wheel located on the Side of the A&ultima SP1000 instead of on the top, users can control the volume and turn the LCD screen ON/OFF, all with one simple control.

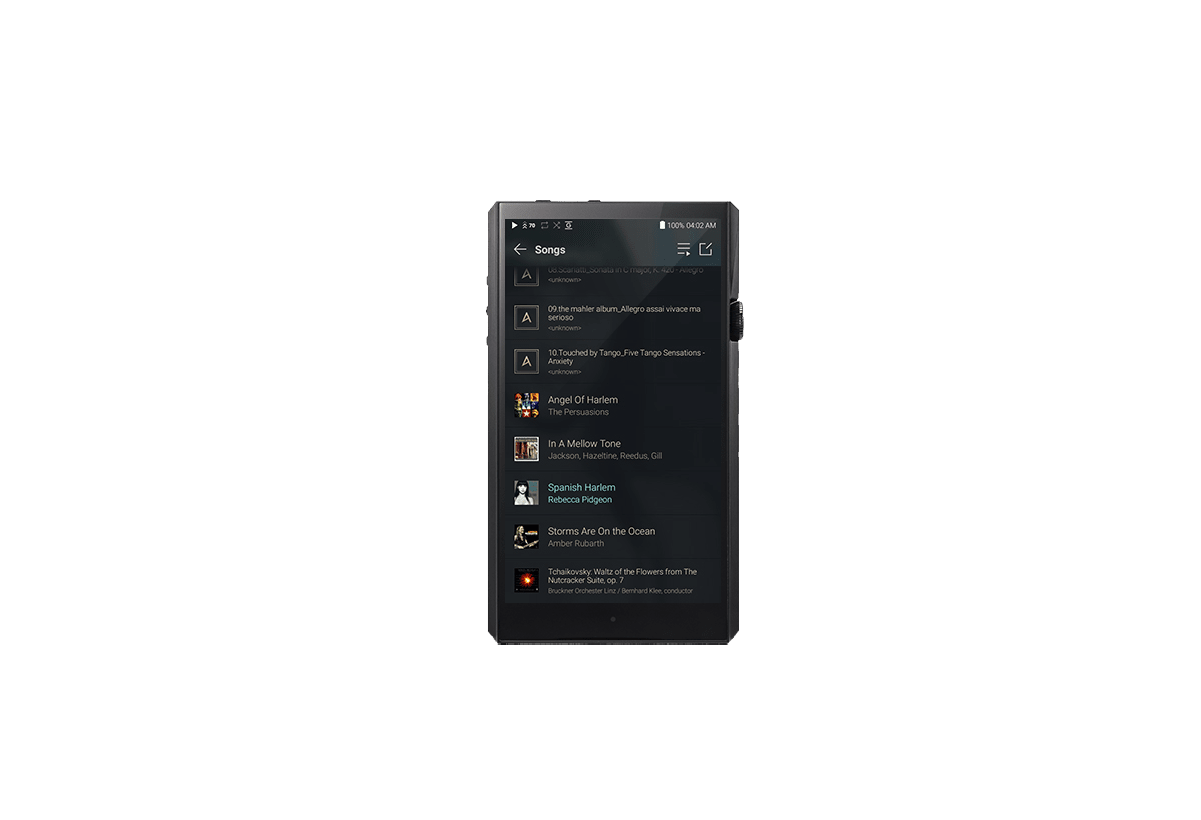

The A&ultima SP1000 features a bezel-less design to maximize screen size. The high-definition HD5 grade display delivers a vibrant and engaging viewing experience. Song and player information is sharp, colorful and easily to read on the larger, brighter screen.
- Player is in the main. All functions are centered on "music replay."
- Secure access to the music DB and features to manage music files
- Minimum menu depth and simple structure
Faster Charging, Quicker File Transfer
Playing back up to
file transfer speeds up to
Next generation USB Type-C support allows file transfer speeds up to 10Gbps and supports both data transfer and charging from the same cable. USB 3.0 protocol transfers data twice as fast when compared to other Astell&Kern players. Charging with a fast charger (at 9V/1.67A) takes only two hours and allows up to 12 hours of continuous playback.
- The maximum 12-hour continuous play is based on 16-bit/44 kHz, FLAC file format, screen off, 75 of volume playback.
- Fast charger (9V/1.67A) and general Charger (5V/2A) are not included in the package.
MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording.Discover more
The master MQA file is fully authenticated and is small enough to stream or download. Visit mqa.co.uk for more information.
Astell&Kern SP1000 includes MQA technology, which enables you to play back MQA audio files and streams,
delivering the sound of the original master recording.
The MQA logo is a trade mark of MQA Limited. © MQA Limited 2018
Roon Ready network players from our partners have Roon’s high-resolution streaming technology built right in.Discover more
They combine simple setup, daily reliability, and support for the highest level of digital audio performance in the industry.
Every Roon Ready player is certified by Roon to guarantee the same stellar experience, regardless of its manufacturer, its price, or its features.
The A&ultima SP1000 is like a natural gemstone carefully refined by professionals.
Knowing that sound is reflected from mass, like light is reflected from a surface;
we designed the A&ultima SP1000 like a gemstone with reflective features on its surface.
The crown-patterned volume wheel on the right corner is similar in appearance to a cut gemstone, which reflects light from various angles. The sophisticated volume wheel on A&ultima SP1000 not only delivers visual and textual details with precision, but allows convenient, one finger ON/OFF control and fine volume control with the addition of both push and turn features.
The external chassis of the A&ultima SP1000 is made of rugged Stainless Steel/Copper that resists aging and external shock. The A&ultima SP1000 is the ultimate music player, crafted in an artistically designed metallic setting.
Introducing the new SP1000 Onyx Black. This sleek and premium black coated stainless steel was made possible using PVD (Physical Vapor Deposition) coating technology. It is environmentally friendly and the results are finishes that provide long-lasting protection and durability, are resistant to chemicals, easy to maintain and protect against corrosion and wear. PVD coating has been used for products where higher endurance and reliability is demanded, including medical instruments, luxury accessories and more.
Onyx Black / Stainless Steel / Copper
Onyx Black, Stainless Steel : Stainless Steel / Copper : Copper
5inch (720 x 1,280) Touchscreen
Supported Audio Formats
WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA
Services(Tidal Masters), Local files, External USB, MQA-CD(ripped)
8kHz ~ 384kHz (8/16/24/32bits per Sample) / DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
Balanced 3.9Vrms (Condition No Load)
AKM AK4497EQ x2 (Dual DAC)
AKM AK4497EQ x2 (Dual DAC)
Support up to 32bit / 384kHz Bit to Bit Decoding
USB 3.0 Type-C input (for charging & data transfer (PC & MAC)) / Connection Mode : MTP (Media Device)
PHONES (3.5mm) / Optical Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported)
802.11 b/g/n (2.4GHz)
2.98 ”(75.8 mm) [W] x 5.2 ”(132 mm) [H] x 0.64 ”(16.2 mm) [D]
Onyx Black, Stainless Steel : 13.64 oz (386.6 g) / Copper : 13.68 oz (387.9 g)
Firmware upgrades supported (OTA)
±0.062dB (Condition: 20Hz~20kHz) Unbalanced / ±0.061dB (Condition: 20Hz~20kHz) Balanced
±0.68dB (Condition: 10Hz~70kHz) Unbalanced / ±0.67dB (Condition: 10Hz~70kHz) Balanced
Signal to Noise Ratio
120dB @ 1kHz, Unbalanced / 122dB @ 1kHz, Balanced
138dB @ 1kHz, Unbalanced / 143dB @ 1kHz, Balanced
0.0005% @ 1kHz, Unbalanced / 0.0008% @ 1kHz, Balanced
0.0004% 800Hz 10kHz(4:1) Unbalanced & Balanced
Balanced out 2.5mm (1ohm) / PHONES 3.5mm (2ohm)
- Frequency Response
Reference Clock Jitter
200 Femto Seconds
- Clock Jitter
3,700mAh 3.8V Li-Polymer Battery
Continuous Playback Time
Up to 12 hours (Standard - MUSIC: FLAC, 16-bit/44kHz, Volume 75, LCD Off)
About 2 hours (Standard - 9V/1.67A Fast charging)
microSD (Max. 1TB) x1
- Built-in Memory
Windows XP, Windows 7,8,10 (32/64bit), MAC OS X 10.7 and up
- Supported OS
- Audio was NOT muted during the measurement.
- The image/specification may be changed without notice to improve product performance and quality.
