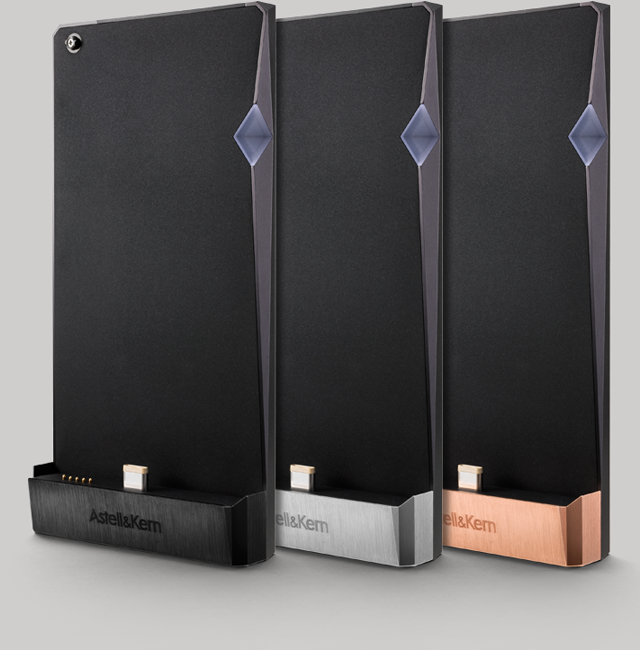

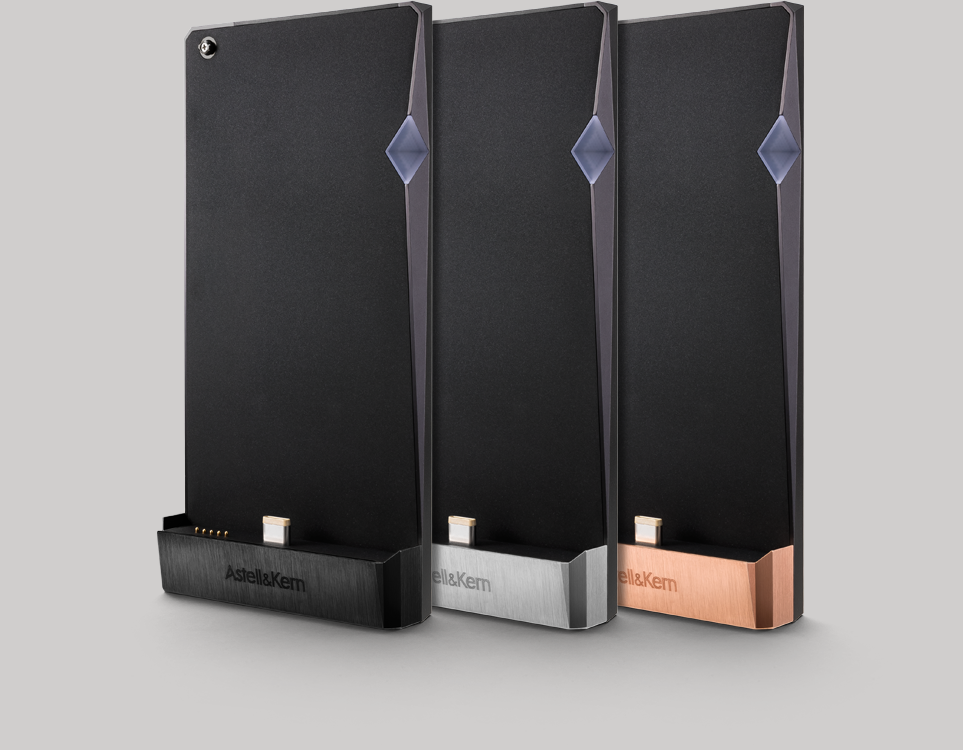

SP1000 AMP

Made Only for the SP1000

An Amplifier module designed specifically for the SP1000 to drive full-sized, high-impedance headphones.

The SP1000 AMP offers High Gain output of 10Vrms for Balanced output and 6.2Vrms for Unbalanced output.
The modular design fits perfectly with your SP1000.

The SP1000 AMP adds more power and performance for your SP1000.

HIGH GAIN

The SP1000 AMP offers 10Vrms for Balanced output on the High-Gain setting.

Low Gain High Gain

Unbalanced 2.9 Vrms / Balanced 6.2 Vrms

(Condition No Load)

Unbalanced 6.2 Vrms / Balanced 10 Vrms

(Condition No Load)

The AMP has been designed to protect your hearing.
It adjusts the output every time the AMP is turned on and/or your headphone is disconnected from the AMP.

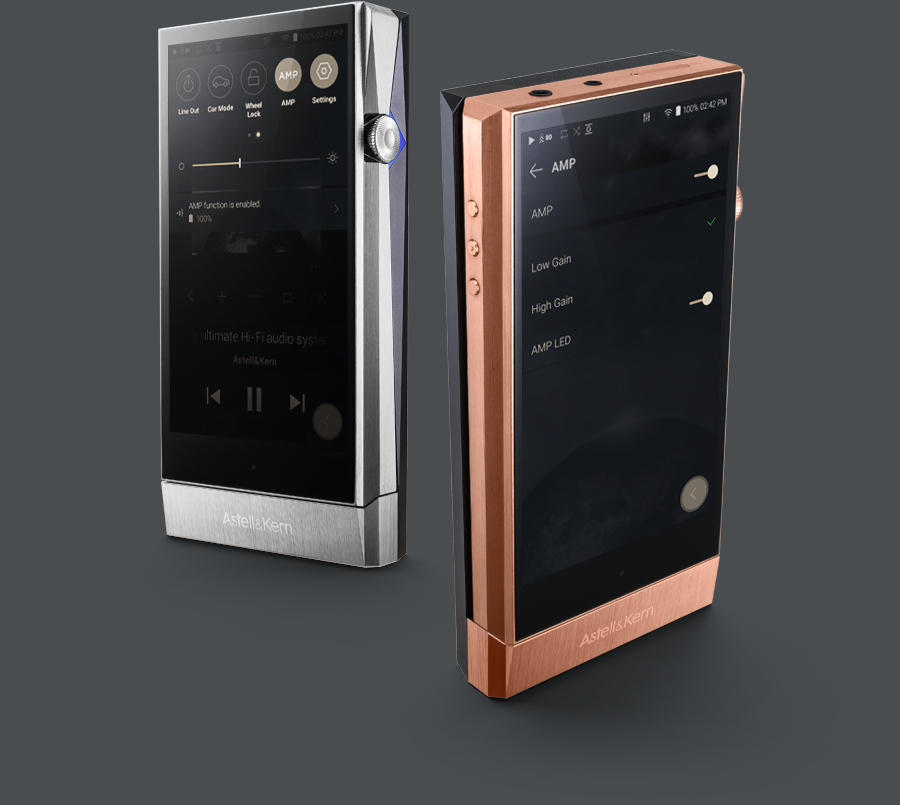

The AMP can be turned on and off easily from the quick settings menu. Gain can be adjusted in the full settings menu.

- When the SP1000 AMP is connected to the SP1000, Optical out, USB-DAC, USB-Audio, Line-Out and CD-Ripping functions will not be available.

Turning on AMP Disconnecting IEM/Headphone GAIN Setting Change

Yes

Yes

Yes

Improved output performance

The SP1000 AMP offers higher power output and better efficiency*, using updated circuitry and audio volume control.
( * compared to the AK380 AMP module)

SP1000 AMP vs. AK380 AMP
Model SP1000 AMP AK380 AMP

Low Gain Unbalanced 2.9Vrms
/ Balanced 6.2Vrms (Condition No Load)
Unbalanced 2.1Vrms
/ Balanced 2.1Vrms (Condition No Load)
High Gain Unbalanced 6.2Vrms
/ Balanced 10Vrms (Condition No Load)
Unbalanced 4.1Vrms
/ Balanced 8.1Vrms (Condition No Load)

AUDIO BLOCK

USB
Type-C
POGO
L+ L-
R+ R-
GND
Micom Control
Signal
Volume Control
L+ L-
R+ R-
L+ L-
R+ R-
Balanced
AMP 1
Balanced
AMP 2
Unbalanced
AMP
L+ L-
R+ R-
L R
Main Board Balanced
Out
Unbalanced
Out

3,700 mAh
Large-capacity Battery

The SP1000 AMP is equipped with a 3,700mAh rechargeable battery to provide
9 hours of uninterrupted music playback.
– SP1000 AMP supports 9 hours of continuous unbalanced-output playback.

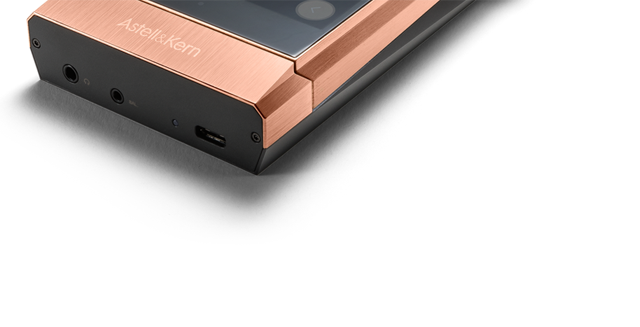

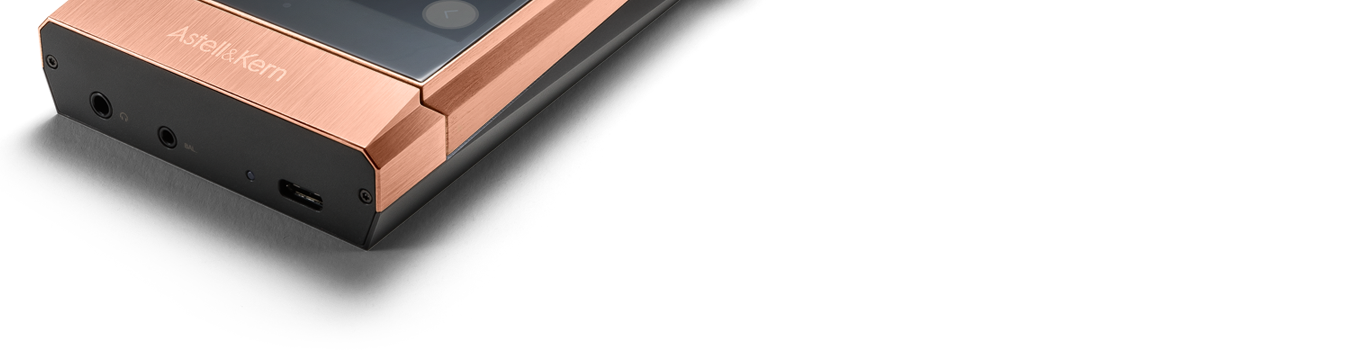

Simplicity of integral AMP

The SP1000 AMP offers greater portability when paired with the SP1000 player with its optimal design and fit.

SP1000 AMP vs. AK380 AMP
Model SP1000 AMP Other AMP
Charging Charges both SP1000 + SP1000 AMP at the same time Player and amplifier have to be charged separately
Convenience Connection Uni-Body No Additional Interconnect Cables Needed
Improved Locking Mechanism
Separate cables needed
Rubber bands, Velcro or other form of bundling required
Volume Control Single control of volume using the SP1000 volume knob Separate volume controls

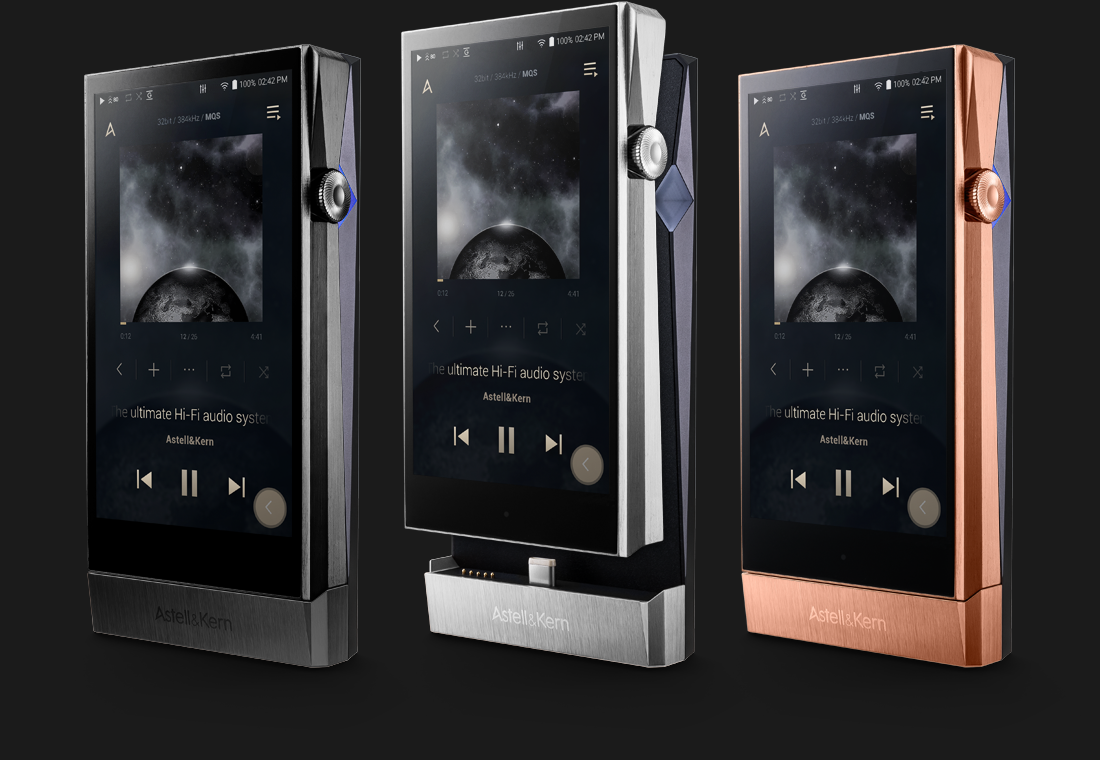

Perfect Unity

The black backing of the AMP represents shadows of the natural materials of the SP1000 and as the wavelengths of the sound splash in every direction, the reflected shadows express a divided silhouette.

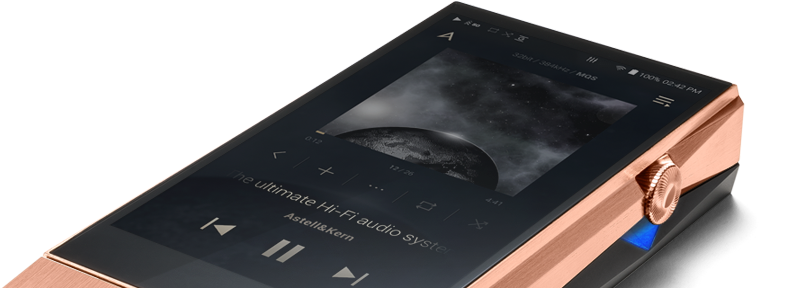

The soft blue light surrounds the SP1000 volume wheel and accentuates the beautifully crafted crown pattern as the light shines upon it.

The precise angle of the wheel and the AMP surface, when combined together, has a functional space that does not interfere with the operation of the wheel and conveys the AMP status through the blue and red colors.

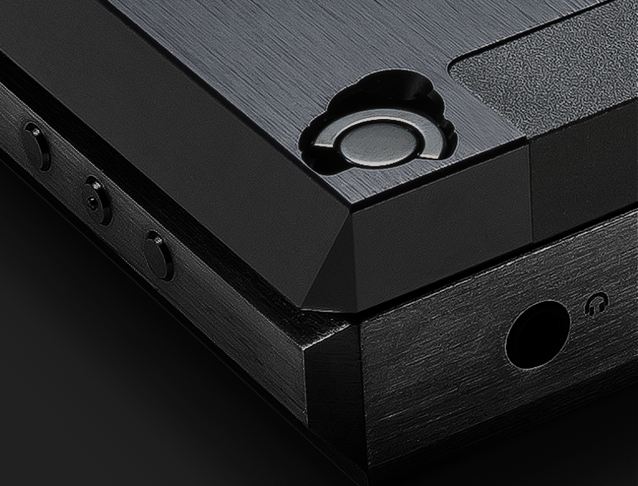

The SP1000 player locks to the amp, providing a simple and secure connection, giving you the feel of a single, united device.

Specification

General Specifications
Model
SP1000 AMP
Body Color
Onyx Black / Stainless Steel / Copper
Body Material
Aluminum
Front Deco
Stainless Steel
Output Level
[Low Gain] Unbalanced 2.9 Vrms / Balanced 6.2 Vrms (Condition: No Load)
[High Gain] Unbalanced 6.2 Vrms / Balanced 10 Vrms (Condition: No Load)
Input
USB Type-C input
Outputs
Unbalanced Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported)
Dimensions
2.98 ”(75.7 mm) [W] x 5.82 ”(148 mm) [H] x 0.35 ”(9 mm) [D]
Weight
7.05 oz (200 g)
Audio Performance
Frequency Response
[Low Gain] ±0.06 dB (Condition: 20 Hz – 20 kHz) Unbalanced / Balanced
[High Gain] ±0.06 dB (Condition: 20 Hz – 20 kHz) Unbalanced / Balanced
Signal to Noise Ratio
[Low Gain] 110 dB @ 1 kHz, Unbalanced / 111 dB @ 1 kHz, Balanced
[High Gain] 111 dB @ 1 kHz, Unbalanced / 111 dB @ 1 kHz, Balanced
Crosstalk
[Low Gain] 107 dB @ 1 kHz, Unbalanced / 131 dB @ 1 kHz, Balanced
[High Gain] 107 dB @ 1 kHz, Unbalanced / 131 dB @ 1 kHz, Balanced

- The image/specification may be changed without notice to improve product performance and quality.
