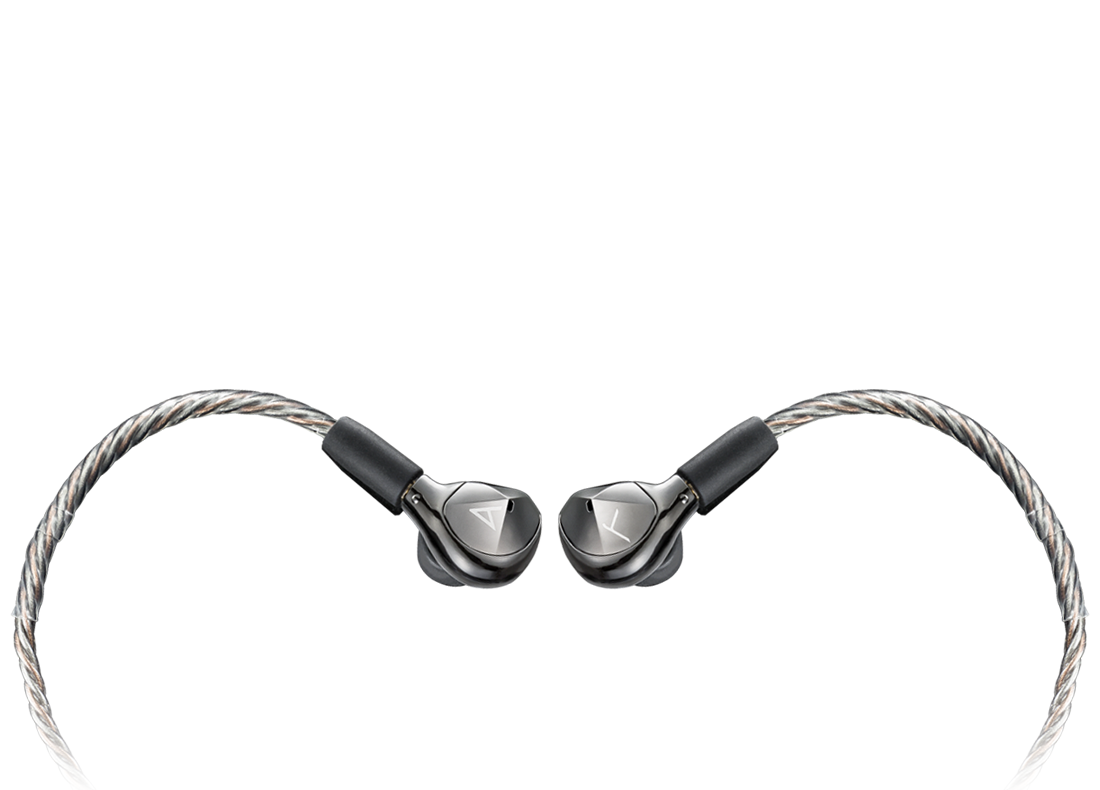

AK T9iE

Tesla Technology, Further Refined

beyerdynamic + Astell&Kern

Astell&Kern is proud to announce the all-new AK T9iE.
The AK T9iE is the third in-ear collaboration product by beyerdynamic and Astell&Kern.
Specially tuned for Astell&Kern portable music players, the AK T9iE has an extremely neutral sound signature with soft treble,
linear midrange and slightly elevated bass.

The AK T9iE uses beyerdynamic's patented high-efficiency Tesla Technology and is manufactured by hand in Germany,
satisfying the highest standards.

Newly designed acoustic vent port for improved bass response

Enhanced treble response using a specially engineered acoustic filter with integral earwax protection

Pure silver and OCC hybrid cable (2.5mm 4-pole balanced)

Designed by Astell&Kern,
Tuned for Astell&Kern by beyerdynamic,
Handmade in Germany

AK T8iE Mk vs. AK T9iE

AK T8iE Mk

AK T9iE

Vent hole

New acoustic vent port

One-layer grille filter

Two-layer acoustic filter

High-grade transparent silver-plated cable

4N pure silver and 7N OCC copper hybrid cable

2.5mm cable + 3.5mm cable

2.5mm cable + 2.5 to 3.5 interconnector

5 sizes of ear tips

7 sizes of ear tips

Designed by beyerdynamic

Designed by Astell&Kern

Acoustic sound signature of AK T9iE

Our target is to make the sound more natural, especially when playing back hi-res audio with Astell&Kern Players. The newly designed acoustic vent port allows for improved bass response and enhanced treble softness by specially engineered two-layer acoustic filter with integral earwax protection.

Internal Structure

Outer housing shell PCB with high precision
gold-plated
MMCX connector
Tesla Magnet
assembly
Diaphragm
suspension
Diaphragm
with
voice-coil
Inner housing shell Two-layer acoustic filter
with integral earwax protection
Eartip

New acoustic vent port

The newly designed acoustic vent port has a slightly enlarged vent hole that is located in the middle of the cover plate which allows for a very deep bass that is extremely well controlled.

Two-layer acoustic filter

A specially engineered two-layer acoustic filter is utilized in the sound outlet, different from the AK T8iE Mk, and serves two purposes - protection from earwax and an acoustic filter element which produces very pure and neutral treble.

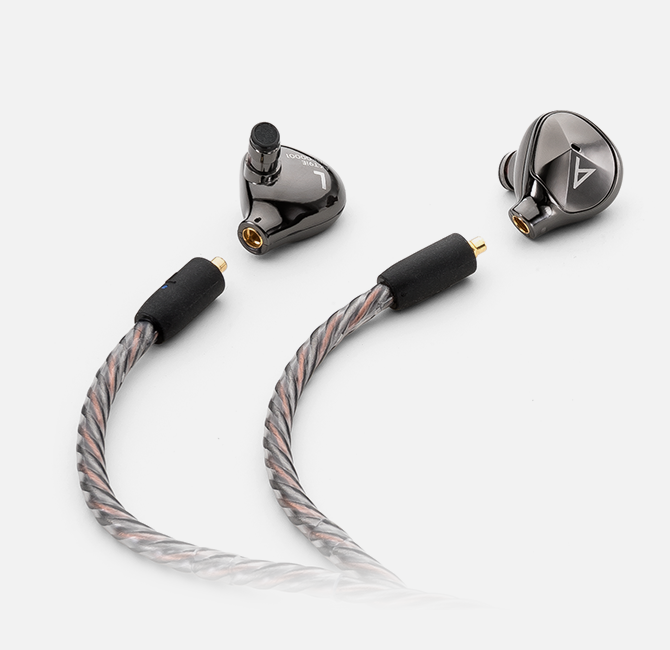

4N pure silver and 7N OCC copper hybrid
2.5mm 4-pole cable

The same cable used for AK T5p 2nd Generation has been utilized for AK T9iE.
It's made with 4N pure silver with silver plated 7N OCC to deliver the high in this combination; and the 7N OCC to bring the low.
This hybrid construction of pure silver, silver OCC and OCC litz creates a unique harmony.
No more sharp highs or too much bass: bring perfect balance to your music with this unique cable.

Silver Plated Single Crystal Copper Wire
+ Silver Wire 0.05 26PCS + 0.08 10PCS
Single Crystal Copper Wire 0.05
OCC 26PCS
+ 0.08 OCC 10PCS
High Tension Fiber 400D
for All Filler
Jacket Non-migration TPU
pass RoHS

Design Concept

AK T9iE is a new ultra-compact IEM optimized with both: the technologies of beyerdynamic and the design identity of Astell&Kern. The design of AK T9iE highlights the "Contrast of Surfaces" and shows the delicacy and details of Astell&Kern with jewel-like carved planes on the exterior housing. The illumination from the PVD coating will reveal different reflections of light so that you see various shapes depending on the viewpoint. It also has an ergonomic design that makes them comfortable to wear for many hours of music listening.

Specification

General Specifications
Model
AK T9iE
Transducer type
Dynamic, moving-coil
Operating principle
closed
Frequency response
8 – 48,000 Hz
Impedance
16 Ohm
Total harmonic distorsion
<0.2 %
Power handling capacity
10 mW
Sound coupling to the ear
intra-aural
Cable
4N pure silver and 7N OCC copper hybrid 2.5mm 4-pole cable
